X-Beam
Inflatable emergency response shelter

A rapidly deployable, self-erecting inflatable habitat designed for use in emergencies or remote areas without infrastructure.

Rapid transport, Deployment and Repurposing

Inflatable emergency response shelters are widely used across various scenarios, including natural disasters, humanitarian aid missions, and military operations. They serve as mobile field hospitals, decontamination units, command centres, and temporary accommodations for displaced populations. Emergency services and first responders rely on them for triage stations and incident command posts, ensuring swift, on-site operational capability. Their ability to be transported, deployed, and repurposed quickly makes them a critical tool in managing crises where time and adaptability are paramount.

XBeam Advanced (XBA) Inflatable Shelter

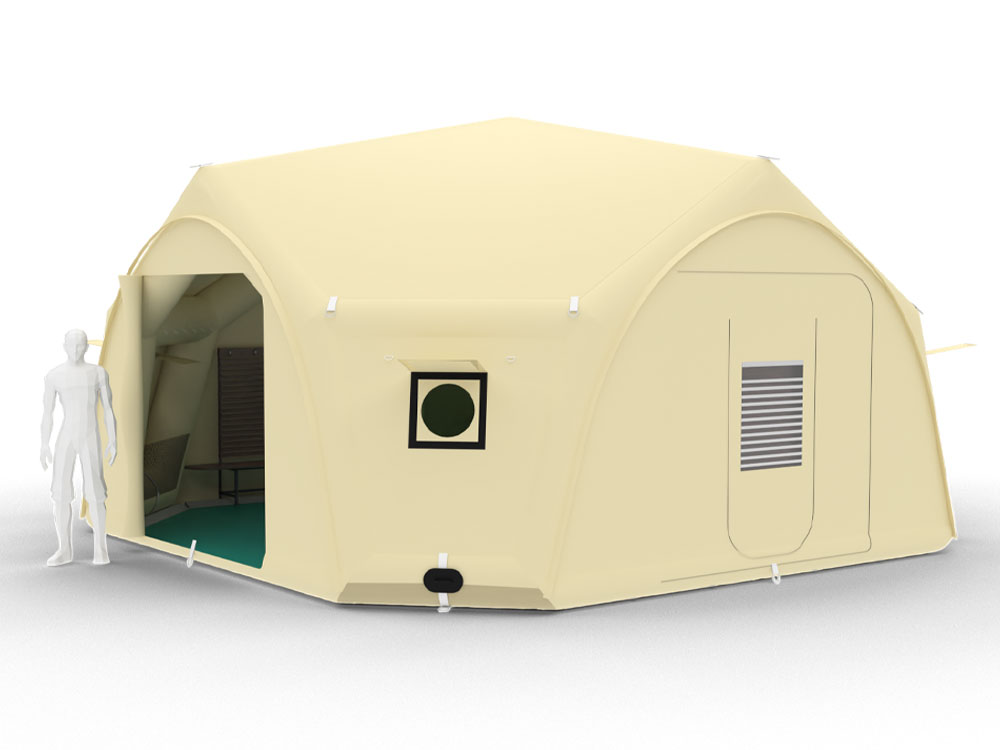

Self Erecting Inflatable Shelter

The X-beam Advanced (XBA), self-erecting inflatable emergency response shelter by Giant Inflatables Industrial is a rapidly deployable temporary structure designed to provide immediate protection and operational space during critical situations.

Engineered with high-strength inflatable beams, X-Beam shelters require minimal manual setup and expand into a fully functional enclosure within minutes.

The inflatable emergency response shelter’s lightweight yet durable materials ensure resilience against harsh weather conditions, offering reliable shelter in even the most challenging circumstances.

XBeam Inflatable Emergency Response Shelters eliminate the need for heavy equipment or extensive manpower, making them ideal for emergency preparedness and disaster response efforts.

The XBeam specifications

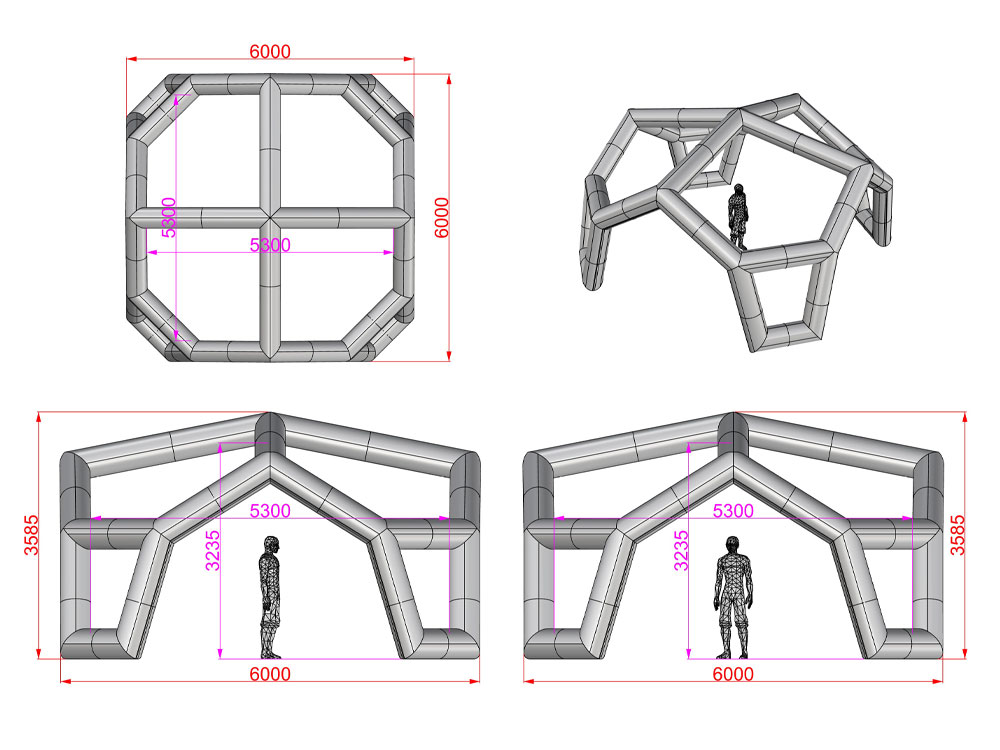

Inflatable Emergency response shelter 3D rendering

XBA500 - 10x5m Variant

KEY FEATURES:

XBA 500

Key Specifications:

Usable Workspace:
4.5m Long
4.5m Wide
2.75m High
Footprint:
4.92m Long
4.92m Wide
3.3m High
Total weight:
115kg
Packed dimensions:
1.5m X 0.7m X 0.7m

Inflatable Framework:
1050 gsm Valmex Marine PVC.

Integrated groundsheet:
550g PVC

Packed dimensions:
1.5m X 0.9m X 0.9m

Total weight: 240kg

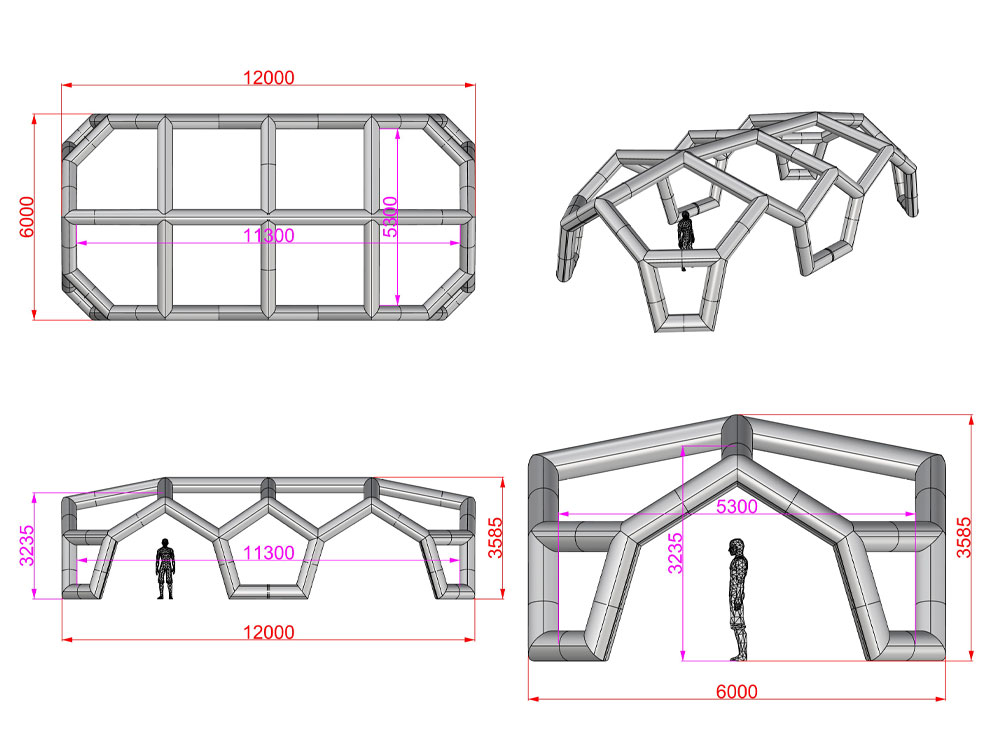

XBA1000 - 10x5m Variant

KEY FEATURES:

XBA 1000

Key Specifications:

Usable Workspace:
9.5m Long
4.5m Wide
3m High
Footprint:
10m Long
4.92m Wide
3.3m High
Total weight:
240kg
Packed dimensions:
1.5m X 0.9m X 0.9m

Inflatable Framework:
1050 gsm Valmex Marine PVC.

Integrated groundsheet:
550g PVC

Packed dimensions:
1.5m X 0.9m X 0.9m

Total weight: 240kg

Overview

The X-Beam Advanced (XBA) Inflatable Emergency Response Shelter is a rapidly deployable, self-erecting, inflatable habitat designed to deploy in response to emergency situations, or in remote areas without existing infrastructure.

Rapidly Deployable

Ready for use in under 6 minutes, the design leverages on the benefits of our rapid deployment geodesic tent design: sturdy, self-erecting, manageable size and weight for handling and transporting. In order to create significantly more space for utilization, we have designed the sides to be vertical.

Self-Erecting Inflatable Shelter
Self-Erecting Inflatable Shelter
Self-Erecting Inflatable Shelter

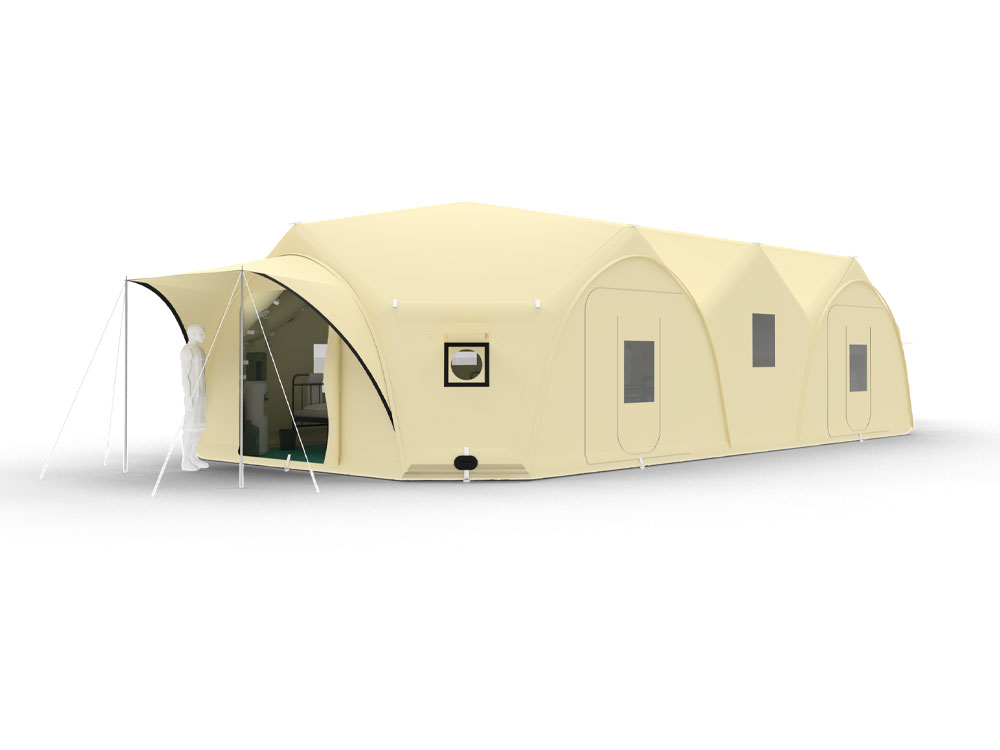

Modular Design

The modular design allows the tent to be used as a stand-alone unit or to be connected to other XBA shelter modules. The generic connections between modules allow for limitless setup configurations.

XBA Variants

The XBA Inflatable Emergency Response Shelter is supplied in 5x5m and 10x5m variants with either four doors (opening on all sides) or a two-door version.

self-erecting inflatable emergency shelters

Frequently Asked Questions

What are the advantages of the X-Beam's Emergency Response Shelter’s self-erecting design in an emergency?

The self-erecting design enables extremely rapid deployment, a critical advantage in emergency response. A small team of 2 – 4 people can have the shelter fully operational in under ten minutes, allowing responders to establish a functional facility almost immediately upon arrival.

How does the X-Beam's modular design allow for the creation of larger facilities?

The shelters are designed to be fully modular. Multiple X-Beam units can be seamlessly linked together with connection tunnels to create large, integrated complexes suitable for use as field hospitals, command posts, or triage centres.

What is the transport size and weight of the X-Beam models?

The X-Beam shelters are engineered to be lightweight and pack down into a compact, self contained bag. This ensures each shelter can be easily transported by a small team or in the back of a standard emergency response vehicle.

What are the multiple inflation modes for the Emergency Response Shelter?

The shelter’s design offers multiple inflation options for maximum versatility in the field. It can be inflated using a compressed air cylinder (BA), a 12V or 240V electric inflator, or a manual hand pump, ensuring deployment is possible even when power is unavailable.

How does the X-Beam's construction provide a secure, weatherproof environment?

The shelter features a heavy-duty, integrated groundsheet that creates a fully sealed, waterproof floor. This, combined with the robust, weatherproof outer skin, protects occupants from the elements and provides a secure, clean environment in any conditions.

What is the deployment and securing process for the X-Beam shelter?

The deployment process is simple and intuitive: roll out the shelter, open the air valve, and connect an inflation source. This straightforward process requires minimal training, allowing for rapid and effective deployment in high-stress situations.

Can X-Beam shelters be customised for different emergency services?

Giant Inflatables Industrial offers customisation for the X-Beam shelters. The design can be modified to include specific features such as additional doors, windows, and utility ports for electrical or HVAC systems to meet the unique needs of any emergency response organisation.

Your partner
Self-Erecting Emergency Shelters

Inflatable Portable Shelters

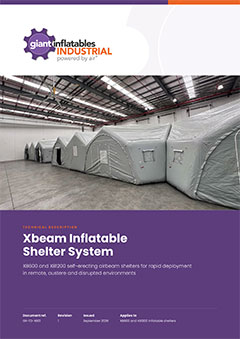

Need information off-line?
